As a leader in the industry, we are committed to providing all your needs for a recreational space. We want to provide a
turnkey service from the platform to the attenuating surface. We carry the most
popular safety surfaces and have the widest selection across the market.

Types Of Surfaces

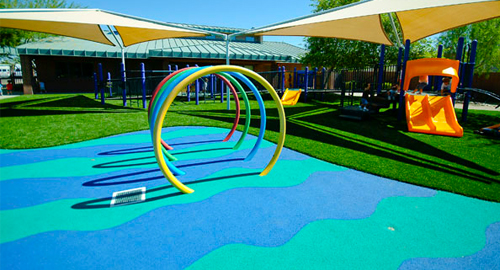

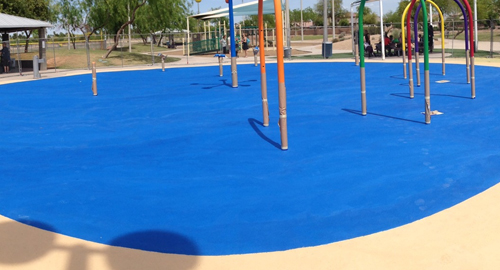

Poured in Place Rubber (PIP)

  • PIP Rubber Systems offer one of the best surfaces for ADA accessibility and longevity.
  • Standard PIP Installations include Ultimate Protection inserts under swing bays and slide exits for increased wear protection in high traffic areas.
  • Wear course is comprised of Standard EPDM (Ethylene Propylene Diene Monomer) rubber granules or chose to upgrade to TPV (Thermoplastic Vulcanizates) granules in 2 available sizes.
  • A wide range of colors allows you to add an element of graphic fun to the playground by creating inlaid shapes and themed designs.
  • PIP can be designed with dimension for added play value and physical activity.
  • Urethane can also be upgraded for more flexibility and UV protection.
  • Cushion layer thickness is customized on site to meet your play equipment’s unique and varying fall heights, saving you money.
  • Poured rubber options for aquatic spaces also available.
Granule Size Material Top Coating
Standard PIP with Ultimate
Protection Inserts
1–4mm EPDM / Optional
TPV Upgrade
Aromatic
Ultimate PIP 0.5–1.5mm TPV Aliphatic*

*Aliphatic coating is strongly recommended for some colors. See back page for details.

Video Featuring: Austin Stanfel

Recycled Bonded Rubber

  • Bonded Rubber is an attractive, seamless surface that uses clean, 100% recycled shredded rubber tires.
  • Installed and troweled by hand to provide a resilient, seam less appearance.
  • This single layer system is comprised of wire free, cleaned pigmented recycled rubber and a polyurethane binder.

Completed Projects

Loose Fill Surfacing

Meets minimum ASTM standards when properly maintained. Accessories to aid in drainage and weed control also available along with recommended wear mats for displacement protection.

Loose Fill Rubber

  • System comprised of rubber chunks comprised of 100% recycled tire rubber
  • Clean, wire-free, non-toxic, and does not leach into ground water.

Engineered Wood Fiber (EWF)

  • Manufactured softwoods and/or hardwoods that average 1”– 2” in length and contain a maximum of 15% fine particles to aid in compaction.
  • Non-toxic and does not contain paint, chemicals, or additives.
Maintenance Longevity Design Accessibility Price
PIP
Recycled Bonded Rubber
Synthetic Turf
Tile
Loose Fill Rubber
EWF

Maintenance services also available—ask your area representative how to protect your investment with
skilled preventative maintenance and repairs.

Available Colors

Available Mix Breakouts

Select one of the available mix breakouts below. You can have up to 4 color selections.

Color Selection

Select your desired color for each of the granules below.

Create Mix

Click the Mix button to generate an image based on your choices above. These are color simulations. Actual granule colors may vary from what you see on your computer screen or print out on a laser printer.

Mix Colors
Reset All

Color Options

Colors can be combined to create different blends. Consult with your area representative about custom or pre-determined color mixtures.*

Poured in Place Rubber (PIP)

Standard Colors

  • Blue
  • Green
  • Beige
  • Terra
    Cotta

Premium Colors

  • Purple
  • Mid
    Brown
  • Teal
  • Bright
    Green
  • Gray
  • Orange
  • Yellow
  • Light
    Blue

Recycled Bonded Rubber

Solid Colors

  • Aqua
  • Turf
  • Pine
  • Cypress
  • Cedar
  • Earth
  • Brick

Mixed Colors

  • Aqua
  • Forest
  • Harvest
  • Terrain
  • Auburn

Synthetic Turf

  • Green/Field
  • Additional colors available upon request

Loose Fill Rubber

  • Teal
  • Blue
  • Brown
  • Green
  • Red

EWF

Tile

Pigmented Rubber Colors

  • Blue
  • Green
  • Terra
    Cotta
  • Beige
  • Gray
  • Black

EPDM Colors

  • Blue
  • Green
  • Purple
  • Mid
    Brown
  • Teal
  • Beige
  • Terra
    Cotta
  • Mid
    Gray
  • Orange
  • Yellow
  • Light
    Blue

*Colors are approximate and may vary by region and product selection. Consult with your area representative for other available colors.

As a leader in the industry, we are committed to providing all your recreational space needs from the platform to the attenuating surface as well as long term maintenance and repairs. We carry the most popular safety surfaces and offer the most comprehensive selection across the market.

Types of Surfaces Poured in Place Rubber (PIP)

Safety and ADA accessibility are essential features to have when it comes to a playground, and poured-in-place rubber, also known as PIP rubber, is a trendy choice for safety surfacing.

Playground surfaces that are tiled or rolled in can result in uneven surfaces with potential tripping hazards. With PIP rubber, there are no shifts or seams in the material, creating an even flow. As an added benefit of this – PIP surfaces are also wheelchair and walker/cane accessible making it a perfect choice for ultimate accessibility. Additionally, due to its porous design, PIP rubber creates a surface that dries quickly.

Besides safety, PIP rubber is also a highly stylish choice with almost limitless color options. Ranging from the traditional blacktop to your customized mascot colors - you have plenty of options when it comes to poured-in-place rubber. It can also be tailored entirely to your spatial design needs, whether for a larger space or walkways around the playground. Traditionally, the wearing course is comprised of Standard EPDM (Ethylene Propylene Diene Monomer) rubber granules, but you have the option to upgrade to TPV (Thermoplastic Vulcanizates) granules in 2 available sizes. Urethane can also be upgraded for more flexibility and UV protection.

Importantly, PIP is also an economical choice as it can be installed quickly and efficiently, thereby saving money on labor costs. No additional work is needed to level the area since the rubber accounts for the landscape variances to create an even surface. Standard PIP Installations include Ultimate Protection inserts under swing bays and slides exits for increased wear protection in these high traffic areas.

Poured-in-place is an environmentally-friendly and durable choice that can offer you everything you want in a safety surface. Poured rubber options for aquatic spaces are also available.

Recycled Bonded Rubber

Bonded Rubber is an attractive, wire-free surface that uses clean, 100% recycled shredded rubber tires and a polyurethane binder. This single layer system is installed and trowelled by hand to provide a resilient, seamless, and environmentally friendly surface.

Loose-Fill Surfacing

Loose-fill surfacing meets with the minimum ASTM standards when it is properly maintained. Accessories are available to aid in water drainage and weed control, along with the recommended wear mats for displacement protection.

Loose Fill Rubber is a form of loose-fill surfacing that uses rubber chunks comprised of 100% recycled tire rubber. It is clean, wire-free, non-toxic, and does not leach into groundwater.

Engineered Wood Fiber (EWF) is another option and comprises manufactured softwoods and hardwoods that average 1"– 2" in length and contain a maximum of 15% fine particles to aid in compaction. It is a non-toxic surfacing option and does not include paint, chemicals, or additives.
